OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T
OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T
OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T
OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T
OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T
OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T
OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T
OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T
OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T
OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T

OEM Rice Drying Machine 15ton Grain Drying Machine Tower Rice Dryer Biomass Fuel 20T 30T

Inquiry
  • Overview
  • Related Products
Products Description

Main Features:

1. High drying efficiency: advanced mixed flow low-temperature circulation drying technology is adopted, and the hot air
temperature can be higher than that of cross flow type (5% higher than that specified in the national standard), so the drying speed is fast; Mixed flow drying is conducive to uniform heating of grain, optimization of ventilation area in drying section, customization of fan and grain flow speed and other parameters, and improvement of drying efficiency;
2. Good grain quality after drying: Based on the principle of mixed flow drying, the grain is in uniform contact with hot air,
the grain uniformity is good, the grain is under the alternating action of high and low temperature in the drying section, and the grain waist burst rate is low;
Flexible conveying: the lower conveying adopts belt conveying, the upper conveying uses gravity gravity flow of grain, there is no screen mesh in the drying section, and there is no mechanical damage in the whole drying process of grain.
3. Energy saving and environmental protection: the mixed flow drying structure has small grain thickness, low air flow
resistance, low fan power and low unit heat consumption, which is only half of the national standard and close to the
first-class energy consumption index;
A dust removal and impurity removal device authorized by the national invention patent is designed, which has good dust removal and impurity removal effect and clean grain after drying.
4. High reliability: the plates of all parts in contact with grains of the whole machine are thickened, and the weight of the
whole machine is 20% - 30% heavier than that of similar domestic models. The frequently worn parts of grains are made of wear-resistant stainless steel, and the service life of the whole machine is long;
5. High degree of automation: the machine can be started with one key, dried automatically and monitored online, which can be unattended.
Optional, remote operation and maintenance management system can monitor the operating conditions and operation parameters of the equipment on the computer platform and mobile app, and can implement remote fault diagnosis and management. If you need this function, you need to communicate with us in advance.
product oem rice drying machine 15ton grain drying machine tower rice dryer biomass fuel 20t 30t-1
Model
5H-15(Conveyor Belt)
Working Principle
Mixed Flow Type
Structural Style
Batch Cycle
Overall Dimensions
L2380*W2080*H11135mm
Weight
3500KG
Processing Capacity(Grain)
15000KG/Batch
Total Power(excluding heat sources)
9.2KW
Fragmentation Rate Increment
≦0.5%
Value-added of Burst Waist Rate
≦2%
Non-uniformity of Moisture Content in Dried Cereals
≦1.0%
Precipitation Range
0.8-1.3%/h
Dry Capacity
≥10.5t.%/h
Loading Time
60min
Discharge Time
80min
Recommend Products
Company Profile

Hunan Nongyou Machinery Group Co., Ltd.

Hunan Nongyou Machinery Group Co., Ltd. was established in 1995, covers an area of nearly 300 acres, and has a standard workshop of 90,000 square meters. In the past 20 years, it has been positioned in the development of agricultural machinery in hills and mountains. It mainly produces dryers, harvesters, tractors, rotary tillers, combined rice mills and other agricultural machinery products in hills and mountains. In March 2018, Nongyou Co., Ltd. successfully listed the New Third Board. The group company is a national technology innovation demonstration enterprise, a national industrial enterprise brand cultivation demonstration enterprise, and a national torch plan key high-tech enterprise. The company's technology center is the only national enterprise and industrial technology center in the southern hilly and mountainous agricultural machinery industry.

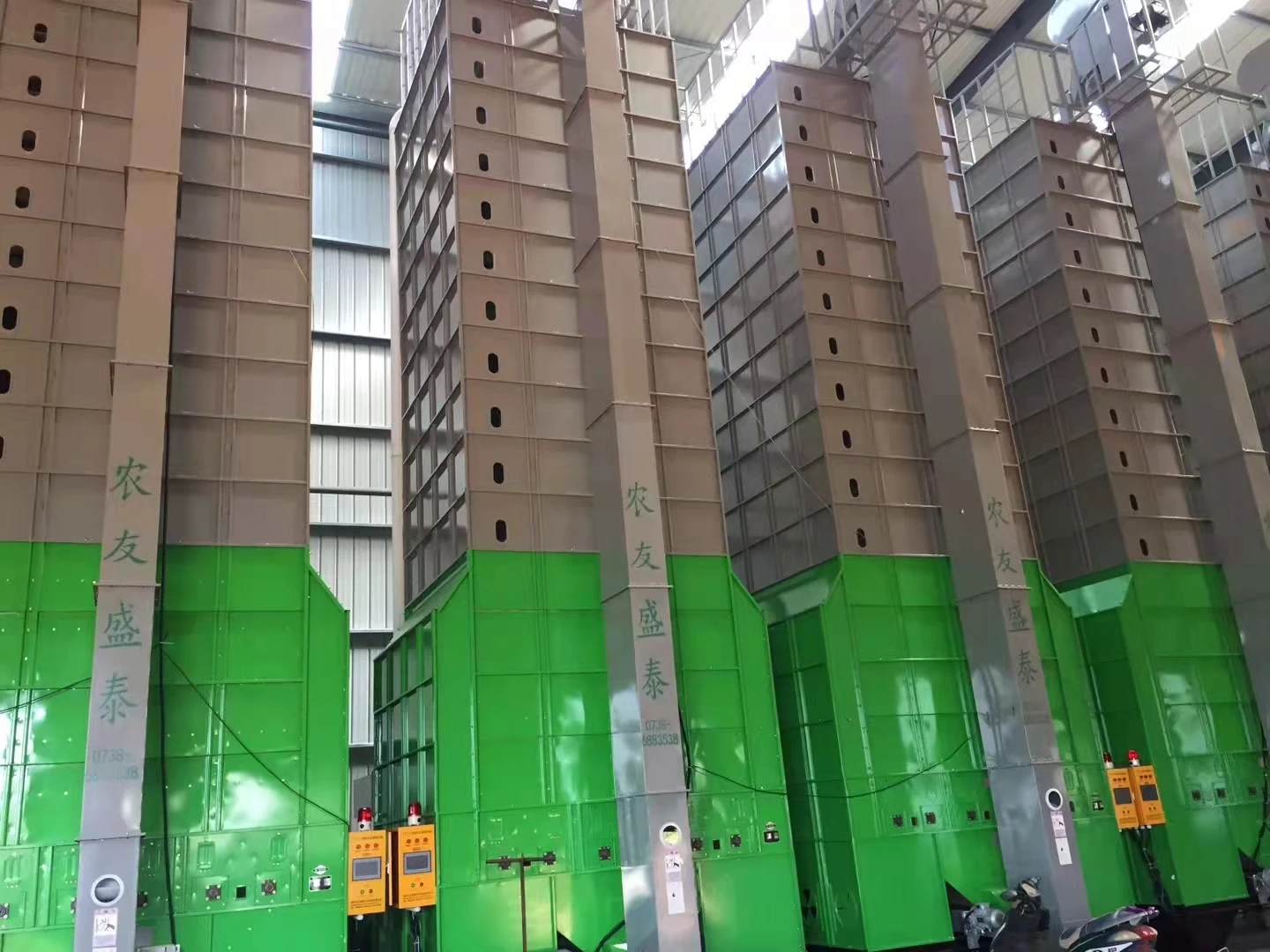

Dryer Center from Customers!
product oem rice drying machine 15ton grain drying machine tower rice dryer biomass fuel 20t 30t-2
product oem rice drying machine 15ton grain drying machine tower rice dryer biomass fuel 20t 30t-3
product oem rice drying machine 15ton grain drying machine tower rice dryer biomass fuel 20t 30t-4
product oem rice drying machine 15ton grain drying machine tower rice dryer biomass fuel 20t 30t-5
product oem rice drying machine 15ton grain drying machine tower rice dryer biomass fuel 20t 30t-6
product oem rice drying machine 15ton grain drying machine tower rice dryer biomass fuel 20t 30t-7
Certifications
product oem rice drying machine 15ton grain drying machine tower rice dryer biomass fuel 20t 30t-8
FAQ

Q: What materials can be dried?
A:Rapeseed, soybean, maize/corn, wheat, barley, sorghum, seed valley,etc.

Q: May I take some samples to test before placing the order?
A: You can test the quality of our sample firstly before you purchase them in large quantity.

Q: Do you have any certifications for your products?
A: Yes, we have CE, ROHS certifications for all of our products.

Q: How about your lead time?
A: Generally, most of items we keep stock for all season . it will take 10 to 15 days after receiving your advance payment. .if we didn’t have stock. The delivery time depends on the items and the quantity of your order. Normally 20 to 35 days.

Q: Are you factory or trading company?
A: We are listing company, with our own factory. Welcome to visit us ! For the sales amount of grain dryer ranks national NO.1 in 2019 and 2020.
.
Q: What is our warranty for the machines? And how would our warranty work?
A: We will provide 1 year of warranty for each of our machines, and if there is some part of the machine which won't work, just send us a small video and we will be able to judge which part is not working and mail you the non-working part for free and lively instruct you to change.

Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ).

Q: What is your payment terms?
A: 30% payment in advance by T/T, 70% balance before delivery.
